Benchtop Freeze Dryer 10 Series
Model : FD-10A; FD-10B; FD-10C; FD-10D; FD-10BM
Freeze-dried Area : 0.12㎡; 0.08㎡; 0.12㎡; 0.08㎡
Cold trap temperature : -60℃
Water capture KG/batch : 4
Standard Vacuum Degree : ≦5Pa (no load)
The freeze dryer adopts hybrid refrigeration technology to ensure low temperature stability and environmental protection.
Product Description
Benchtop Freeze Dryer Feature:
- Refrigeration SystemSecop compressor (international brand) with hybrid refrigeration technology, ensuring low-temperature stability and environmental compliance.
- Control Interface7-inch color LCD touchscreen with user-friendly HMI, lock screen function, and optional remote control via PC/mobile.
- Operating SystemIndustrial-grade embedded OS with isolated power supply design (strong/weak current separation) for enhanced safety.
- Data ManagementAuto-save function for freeze-drying parameters, supporting data review, export (USB), deletion, and anti-loss protection.
- Drying ChamberTransparent high-pressure corrosion-resistant PE chamber (460mm height, one-piece injection molding) for real-time material observation.
- Vacuum SystemStainless steel vacuum line with KF25 quick-connect clamp; corrosion and low-temperature resistant.Vacuum pump delay start (activates below set temperature) to extend lifespan.
- Monitoring & RecordingReal-time display of vacuum level, cold trap/material temperatures, and freeze-drying curves; supports multi-curve storage and USB data extraction.
- Safety & ProtectionVacuum alarm, power-off auto-inflation (prevents moisture ingress), and inert gas filling port.One-click auxiliary heating/defrost for rapid recovery.
- Mechanical DesignAxial cooling fan with dual-ball imported bearings for ultra-stable operation and extended durability.Magnetic maintenance panel for easy cleaning and dust management.
- Smart MaintenanceAutomated reminders for pump oil replacement and system upkeep based on operational hours.
Benchtop Freeze Dryer Specifications:
| Model | FD-10A | FD-10B | FD-10C | FD-10D | FD-10BM | |
|---|---|---|---|---|---|---|
| Type | Standard Chamber | Manual Capping | Multi-manifold | Multi-manifold Capping | T-frame | |
| Freeze-dried Area | 0.12㎡ | 0.08㎡ | 0.12㎡ | 0.08㎡ | / | |
| Amount of vials of cillin | Φ12mm | 920 | 560 | 920 | 560 | / |
| Φ16mm | 480 | 285 | 480 | 285 | / | |
| Φ22mm | 260 | 165 | 260 | 165 | / | |
| Cold Trap Temperature | -60℃ | |||||
| Water Capture KG/batch | 4 | |||||
| Standard Vacuum Degree | ≦5Pa (no load) | |||||
| Ultimate Vacuum Degree | 2PA | |||||
| Material Tray | 200mm 4 layers | 180mm 3 layers | 200mm 4 layers | 180mm 3 layers | / | |
| Consumption | 680W | |||||
| Main Unit Weight | 50KG | |||||
| External Size | 600x440x480mm | |||||
| Power Supply | AC220V50HZ | |||||
| Applicable Environment | Ambient temperature ≦30℃ | |||||
| Noise | ≦55dB | |||||
| Accessories | Vacuum pump, 2 KF25 clamps, 1 KF vacuum hose | |||||

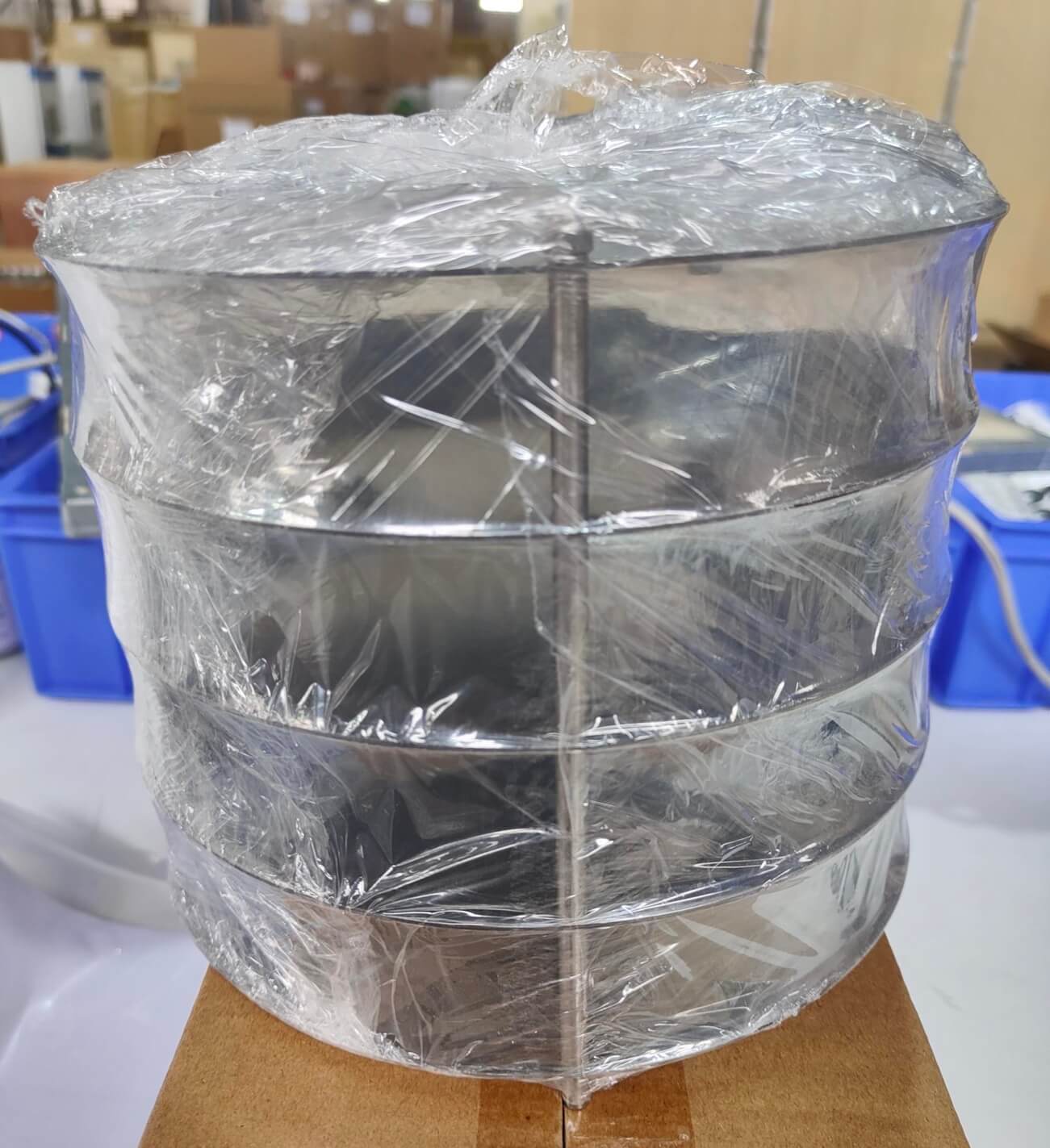

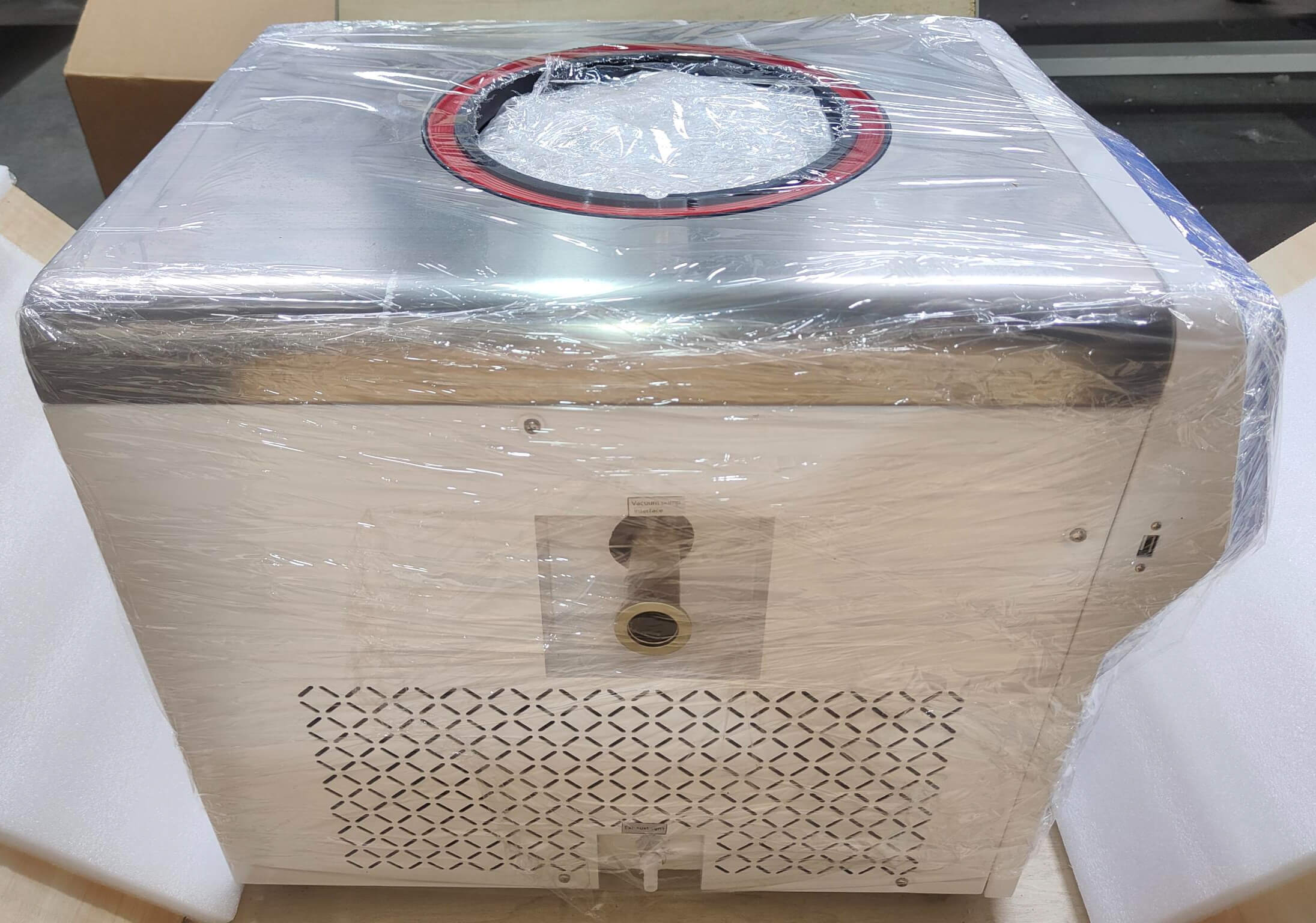

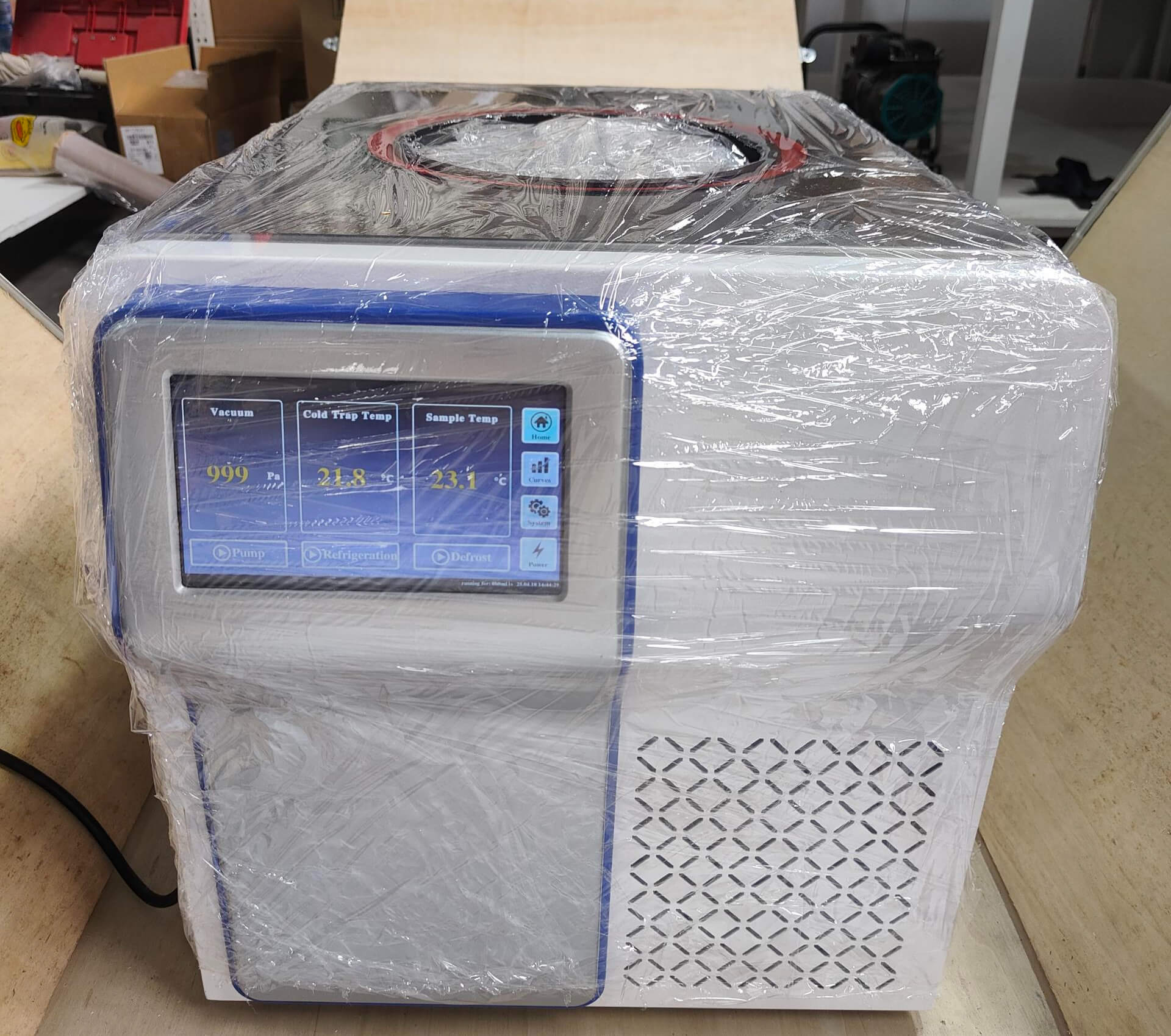

Details of Benchtop Freeze Dryer(FD-10C):
The FD-10C benchtop freeze dryer features a modular design, compact structure, and small footprint, making it ideal for freeze drying laboratory samples.
