Economical -86°C Ultra Cold Freezer
Model : UFZ-86V60E; UFZ-86V180E; UFZ-86V340E; UFZ-86V410E; UFZ-86V590E; UFZ-86V730E; UFZ-86V840E
Capacity (L) : 58 / 188 / 340 / 408 / 588 / 728 / 838
Shelves / Drawers (Qty) : 1 Shelf / 2 Shelves / 3 Shelves/ 3 Shelves / 3 Shelves / 3 Shelves / 3 Shelves
Temperature Range (℃) at RT.10~32℃ : -40~-86
-86°C Ultra Cold Freezer is energy and space efficient for reliable storage applications.
- Product Description
Ultra Cold Freezer Specifications:
| Model | UFZ-86V60E | UFZ-86V180E | UFZ-86V340E | UFZ-86V410E | UFZ-86V590E | UFZ-86V730E | UFZ-86V840E | |
|---|---|---|---|---|---|---|---|---|
| Capacity (L) | 58 | 188 | 340 | 408 | 588 | 728 | 838 | |
| Size(WxDxH)(mm) | Internal | 330x453x410 | 465x465x830 | 488x607x1140 | 606x575x1180 | 606x738x1310 | 963x571x1350 | 894x718x1310 |
| External | 635x757x1212 | 830x810x1607 | 854x1006x1907 | 872x1028x1945 | 872x1192x1994 | 1229x1012x1994 | 1160x1172x1994 | |
| Temperature | Range (℃) at RT.10~32℃ | -40~-86 | -40~-86 | -40~-86 | -40~-86 | -40~-86 | -40~-86 | -40~-86 |
| Sensor | PTC | PTC | PTC | PTC | PTC | PTC | PTC | |
| Controller | Microprocessor | Microprocessor | Microprocessor | Microprocessor | Microprocessor | Microprocessor | Microprocessor | |
| Cooling System | Refrigerant | R4001 (CFC Free) | R4001 (CFC Free) | R4001 (CFC Free) | R4001 (CFC Free) | R4001 (CFC Free) | R4001 (CFC Free ) | R4001 (CFC Free ) |
| Defrost | Manual | Manual | Manual | Manual | Manual | Manual | Manual | |
| Compressor (Qty) | SECOP/1 | CUBIGEL/1 | SECOP/1 | SECOP/1 | SECOP/2 | SECOP/2 | SECOP/2 | |
| Display | Digital display | Digital display | Digital display | Digital display | Digital display | Digital display | Digital display | |
| Audible & Visible Alarm | High/Low temperature, High ambient temperature, Sensor error, Abnormal voltage, Low battery, Door ajar, 72h Power failure backup system(alarm) | |||||||
| Material | Internal | Stainless steel, grade 304 | ||||||
| External | Electro-galvanized steel with antimicrobial powder coating | |||||||
| Inner Door | Stainless steel, grade 304 | |||||||
| Accessories | Standard | USB port, Casters, Remote alarm port, 25 Test hole | ||||||
| Optional | Data logger, Back up system (CO₂/LN₂) | |||||||
| Chart Recorder | / | / | / | / | / | / | / | |
| Shelves / Drawers (Qty) | Shelf/1 | Shelves/2 | Shelves/3 | Shelves/3 | Shelves/3 | Shelves/3 | Shelves/3 | |
| Optional Frozen Racks (Qty) | Racks | 2 (6×2) | 12 (4×3) | 12 (4×4) | 8 (5×4) +8 (4×4) | 16 (5×5) | 18(5×4)+6(6×4) | 24(5×5) |
| Boxes (2 Inches) | 24 | 108 | 192 | 288 | 400 | 504 | 600 | |
| Samples (2ml) | 2400 | 10800 | 19200 | 28800 | 40000 | 50400 | 60000 | |
| Sound Emission (dB) | 50 | 52 | 52 | 50 | 53 | 50 | 55 | |
| Electricity | Voltage / Frequency | AC110/220V±10%, 50/60Hz | ||||||
| Consumption | 6.09KWh/24h | 11.17KWh/24h | 13.09KWh/24h | 12.82KWh/24h | 16.02KWh/24h | 23.44KWh/24h | 19.98KWh/24h | |
| N.W./G.W. (Kg) | 115/155 | 207/222 | 268/288 | 268/293 | 303/332 | 374/394 | 391/424 | |
| Shipping Size(WxDxH) (mm) | 730x845x1400 | 915x928x1818 | 935x1070x2128 | 954x955x2094 | 970x1138x2185 | 1320x970x2185 | 1270x1100x2185 | |
Ultra Cold Freezer Features:
- High-performance V.I.P. (Vacuum Insulation Panel) insulation panels are used to minimize cabinet heat gain and improve temperature stability.
- Efficient cooling system operates the mixed refrigeration system for rapid and stable cooling, while being energy-saving and easy to maintain.

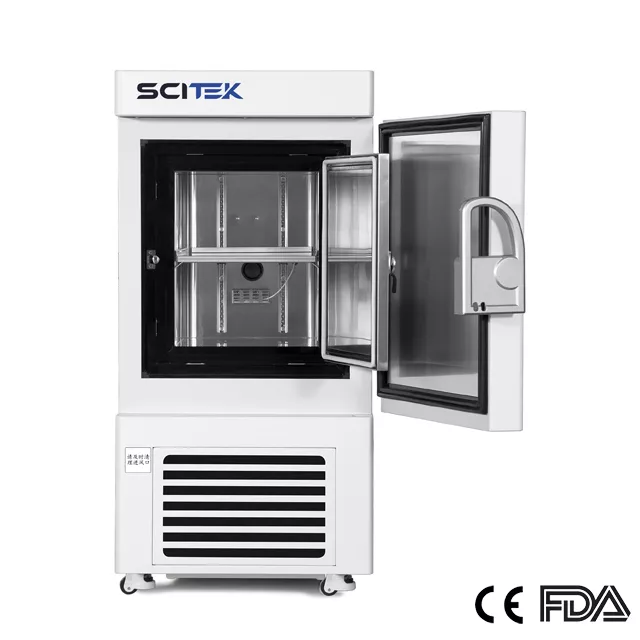

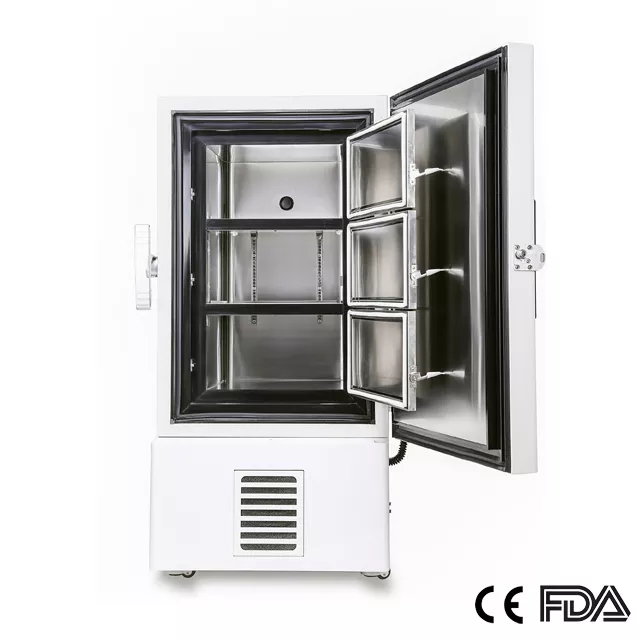

- The inner door has a unique design that separates storage compartments and minimizes frost buildup inside the chamber.
- Upright door with limit door hinge prevents collision when door opens.
- Lockable universal caster wheels for easy moving. Removable inner door for user to defrost and clean.
Reliability
- Safety password protected control panel prevents unauthorized system modification.
- Audible buzzer and visible flashing temperature alarm system for High/low temperature,Sensor error, Thermostat failure alarm, power failure alarm, door switch, ambient temperature alarm, condenser failure alarm, filter check alarm, voltage abnormal alarm, low battery alarm.
- Door lock for storage safety.
Ergonomic Design
- Upright door with limit door hinge prevents collision when door opens.
- Controller password protected to avoid unauthorized system modification.
- Lockable universal caster wheels for easy moving.
- Removable inner door for user to defrost and clean.
