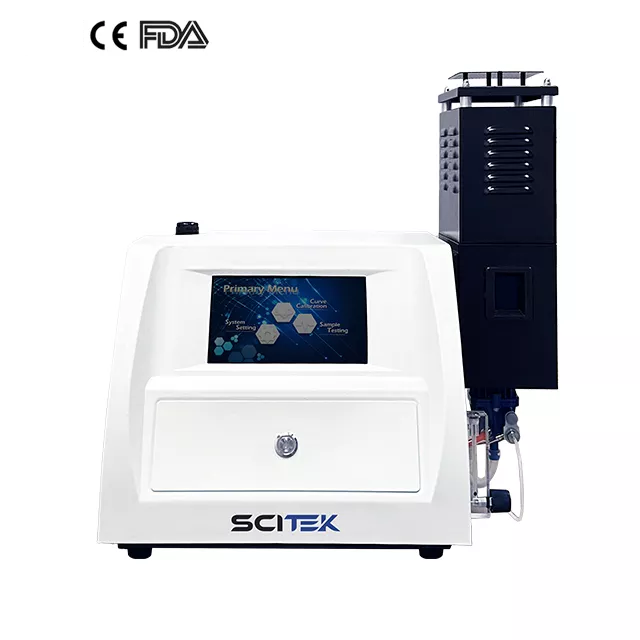

Flame Photometer

Product Description

This flame photometer is a state-of-the-art analytical instrument with an impressive array of features and functions that provide highly accurate data and convenient operability for scientific laboratories and industrial applications.

Its 7″ color touchscreen interface allows users to operate and monitor the instrument quickly and intuitively. Touch screen design allows for a clearer presentation of information and allows the user to maintain complete visibility during use.

Flame Photometer Specifications:

Model		SP-FP6450	SP-FP6440	SP-FP6431	SP-FP6430	SP-FP6410	SP-FP640
Operation Mode		7- inch color touch- screen
Display Value		Concentration value					Optical power
Data Range		0.000～999.9				000.0～999.9	0000～9999
Testable		K, Na, Li, Ca, Ba	K, Na, Li, Ca	K, Na, Ca	K, Na, Li	K, Na	K, Na
Channel Qty.		5	4	3		2
Range ppm	K	0-100
	Na	0-160
	Li	0-100		O	0-100	O	O
	Ca	0-1000		0-1000	O	O	O
	Ba	0-3000	O	O	O	O	O
LOD ppm	K	0.01
	Na	0.01
	Li	0.1		O	0.1	O	O
	Ca	2		2	O	O	O
	Ba	6	O	O	O	O	O
Linear Error	K	0.195
	Na	0.69
	Li	0.15		O	0.15	O	O
	Ca	3		3	O	O	O
	Ba	9	O	O	O	O	O
Response Time		<8s
Sample Uptake		<6ml/min
Stability		< 3% drift over15s when continuously aspirating.
Reproducibility		< 3% coefficient of variation for 7 consecutive samples
Curve Graph		Display				O	O
Printer		Optional build-in thermal printer					O
COM		USB					O
Fuel		LPG
Power		AC220V±22V; 50Hz±1Hz, 250W
Sizes (W×D×H)(mm)		470×460×300
Shipping Size (W×D×H)(mm)		570×560×400
N.W./G.W. (kg)		15/20

Flame Photometer Feature:

Unique to this flame photometer is its direct concentration display, which instantly shows the concentration results from the analysis without tedious calculations. The automatic computation of correlation coefficients greatly simplifies the complexity of data analysis, providing users with more efficient and accurate results.

In addition, the flame photometer provides a pre-selected flame size function, allowing the user to adjust the flame size according to the experiment’s needs, and is equipped with a flame extinguishing protection device to ensure the stability and safety of the experiment.

The measurement range can be flexibly adjusted as required, allowing the user to cover different concentration ranges, and this flexibility is essential for users in other application areas. In addition, the user can select different concentration units, making them more suitable for different experiments or industry standards.

The multilingual user interface ensures the global applicability of the flame photometer, allowing users from different regions to understand and operate the equipment efficiently.

Details of Flame Photometer:

The compact design of the flame photometer ensures it takes up minimal space in the laboratory, making it suitable for environments with limited workspace.

The ergonomic design of the flame photometer, including easy-to-access controls, enhances user comfort and convenience during operation.

The robust construction of the photometer ensures durability and long-term reliability, even in demanding laboratory environments.
