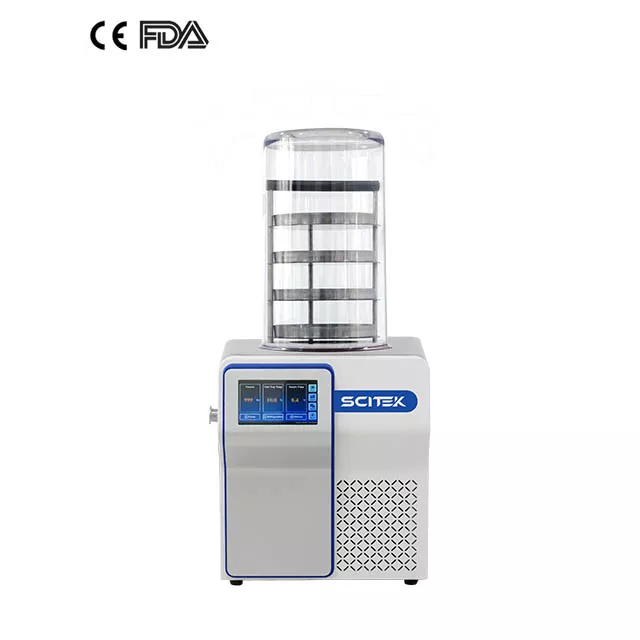

Benchtop Freeze Dryer 10 Series
Model : FD-10A; FD-10B; FD-10C; FD-10D; FD-10BM
Freeze-dried Area : 0.12㎡; 0.08㎡; 0.12㎡; 0.08㎡
Cold trap temperature : -60℃
Water capture KG/batch : 4
Standard Vacuum Degree : ≦5Pa (no load)
The freeze dryer adopts hybrid refrigeration technology to ensure low temperature stability and environmental protection.
Floor Freeze Dryer 18 Series
Model : FD-18A; FD-18B; FD-18C; FD-18D;
Freeze-dried Area : 0.18㎡; 0.12㎡
Cold trap temperature : -60℃
Water capture KG/batch : 6
Standard Vacuum Degree : ≦5Pa
The floor freeze dryer adopts vacuum system stainless steel vacuum line, corrosion-resistant, low temperature resistance.

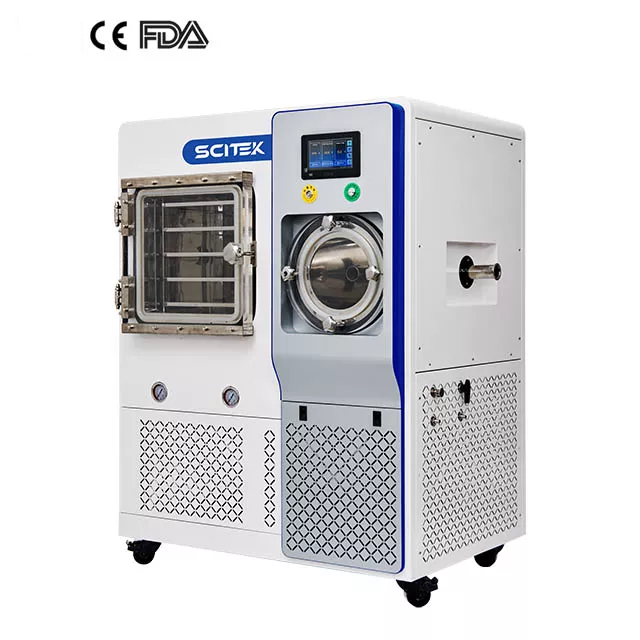

Pilot Freeze Dryer 20 Series
Model : FD-20D; FD-20F; FD-20FT; FD-50F; FD-50FT; FD-100F; FD-100FT;
Freeze-dried Area : 0.2㎡; 0.5㎡; 1㎡
Water capture capacity (kg/batch) : 4kg; 8kg; 15kg
Solution (L) : 3L; 6L; 15L
Tray Spacing(mm) : 85mm; 70mm; 60mm

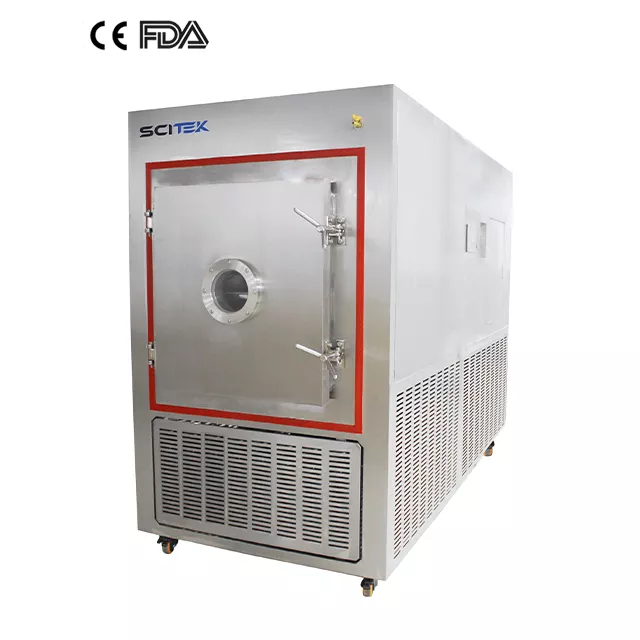

Pilot Freeze Dryer, -80℃ Condenser Temp.
Model : FD-200S; FD-200T
Freeze Drying Area (m2) : 2 / 2
Tray Size (LxWxD)(mm) : 500x700x13
Condenser Temperature (no-loading) (℃) : ≤-80
Vacuum Degree (no-loading) (Pa) : ≤5
Pilot freeze dryer is designed for freeze drying medium to large quantities of samples.

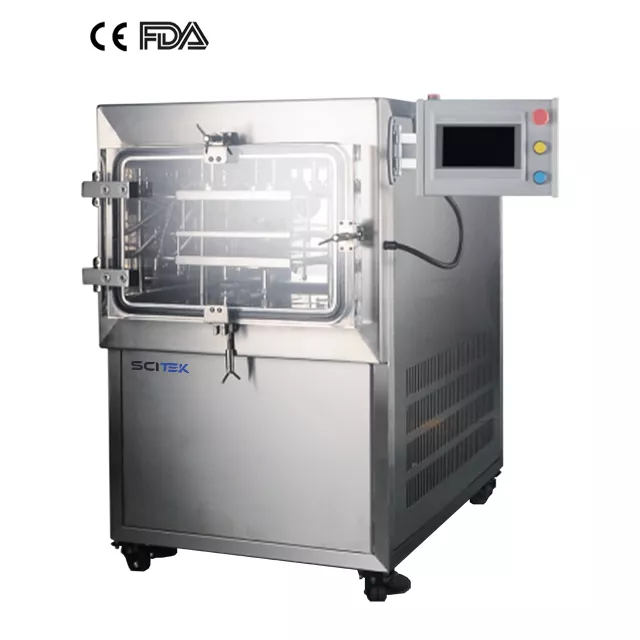

Pilot Freeze Dryer, -80℃ Cold Trap Temp.
Model : FD-P4F; FD-P6F; FD-P10F
Freeze Drying Area (m2) : 0.36/0.56/1
Tray Size(mm) : 360×500/350×400/600×450
Tray Quantity : 2/4/4 Vacuum Degree(Pa) : ≤1Pa
The pilot freeze dryer is designed for freeze drying light to medium sample volumes. The compact design is ideal for laboratories with limited floor space.

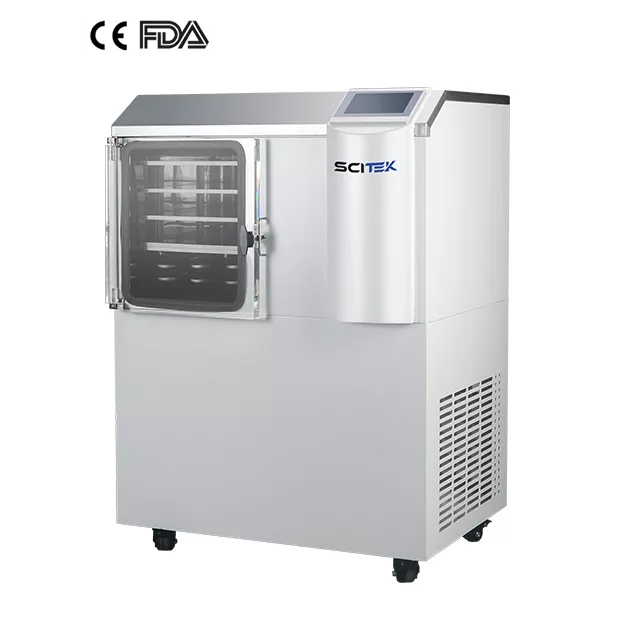

Pilot Freeze Dryer for Liquid and Solid Samples
Model : FD-P3S; FD-P4S; FD-P5S
Freeze Drying Area (m2) : 0.24; 0.36; 0.48
Tray Size(mm) : 300×400
Minimum Cold Trap Temperature(℃) : -65℃
Shelf Temperature(℃) : -50~60℃
Size(W×D×H)(mm) : 980x790x1280; 980x890x1380; 1480x1080x1580
The Freeze Dryer’s operating system offers flexibility and convenience through an easy-to-use touch screen display.

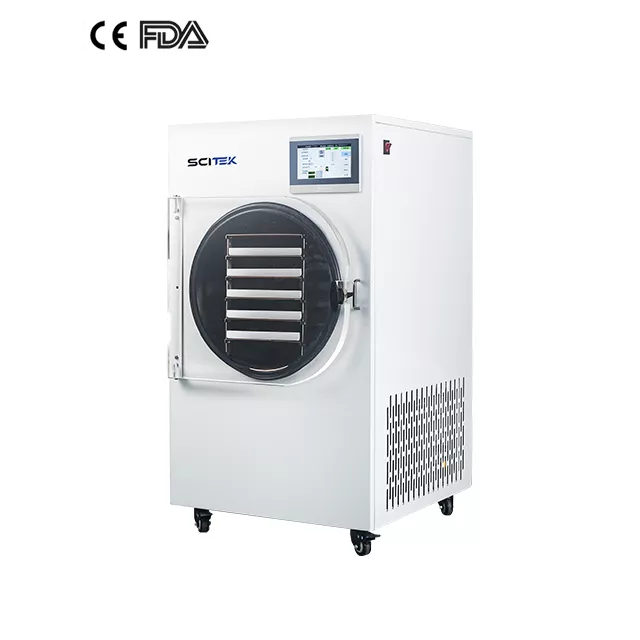

Freeze Dryer, -50℃ Condenser Temp.
Model : FD-3H; FD-6H
Freeze Drying Area (m2) : 0.3; 0.56
Tray Size(mm) : 205×385; 220×510
Maximum Capacity : 3~5kg; 6~8kg
Condenser Temperature : ≤-50℃
Main Machine Size(W×D×H)(mm) : 570x780x1000; 890x750x1370
This is a freeze dryer that can be used for home use and is designed to lyophilise light to medium sample volumes.

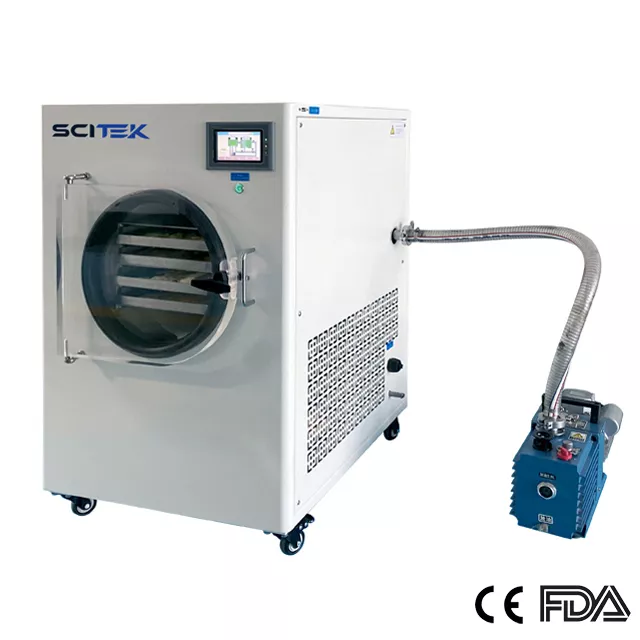

Freeze Dryer, -40/-70 ℃ Condenser Temp.
Model : FD-1; FD-4; FD-6; FD-1A; FD-4A; FD-6A
Freeze Drying Area (m2) : 0.1 / 0.4 / 0.6 / 0.1 / 0.4 / 0.6
Tray Size (LxW)(mm) : 145×275
Vacuum Degree (no-loading) (Pa) : 10
Easy-to-use touchscreen displays provide flexibility and convenience
