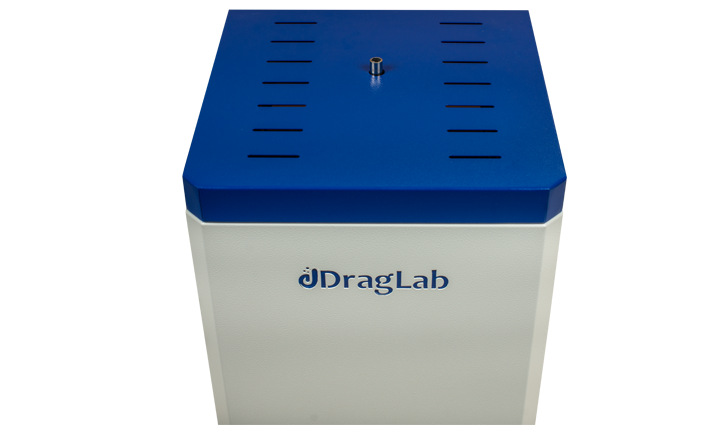

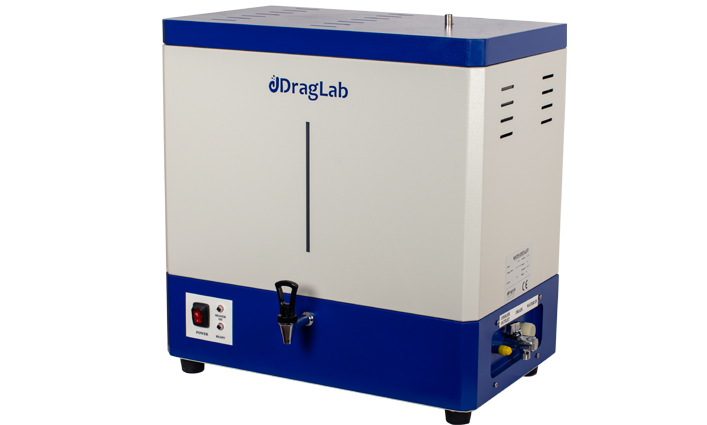

Water Still DS 8025 : เครื่องกลั่นน้ำบริสุทธิ์
• Durable, reliable and Low cost
• High purity distilled water – conductivity approx 2,5 μS/cm at 25 °C
• Built-in 50 litter storage tank
• Automatic water switching and power cut-off
• Electronic water level switch
• Automatic thermostatic cut-off safety system
• Hearing element made of high quality stainless steel
• All water contact materials are made of stainless steel (material no.: EN 1.4301)
• Easily accessed evaporator & storage tank for effortless cleaning and maintenance
• The unit is suitable for both bench and wall mounting.
• All parts and accessories for installation included.
• CE Certificate
Technical specifications
| Capacity | |
|---|---|
| Capacity | 25 Litter / hour |
| Storage Tank | 50 Litter storage tank built-in |
| Consumption | 250 litter / hour |
| Conductivity | approximately 2,5 μS/cm at 25 ºC |
Control technology
| Fully Automatic | Automatic thermostatic power cut-off to protect the heating element in case of low waterAutomatic power activation when the water level reaches the safety line in the evaporator tank to protect the heating element.Automatic refilling of the storage tank after distillate withdrawal , electronically controlled. |
|---|---|
| Water supply | Built-in solenoid valve connection for the evaporator and cooler, with automatic switching on/off based on the water level in the evaporator tank. |
Standard equipment
| Internal material | The tanks (Evaporating tank & Storage tank) are made of stainless steel (material no. EN 1.4301)The condenser (cooler) is made of stainless steel (material no. EN 1.4876).The heating element is made of stainless steel (material no. EN 1.4876). |
|---|---|
| External material | The housing is made from galvanized steel and coated with electrostatic powder. |
| Degassing system | The unit includes a top vent for effective degassing, ensuring pyrogen-free, low-gas, and bacteria-free water. |
| Accessing interior | The evaporator and storage tanks are easily accessible for cleaning and maintenance, facilitating efficient cleaning procedures. |
| Installation | All necessary parts and accessories for installation are included. |
| distillate water withdrawal | Distillate water can be withdrawn by continuously or push mode from front tap. |
| Main switch | The device features a tube indicating water level in the storage tank. |
| Mounting | Suitable for both benchtop and wall mounting. |
Safety
| Water | Low water level sensor with automatic power cut-off to protect the heating element. |
|---|---|
| Heating | Overheating cut-off |
| Degassing | pyrogen-free, low-gas, and bacteria-free water. |
| Power connection | Power cable with 5 pins three-phase CEE plug. |
Connection
| Water inlet | The cooling water inlet is located on the right-hand side of the unit, with a diam eter of 3/4 inch (Ø 19.05 mm). |
|---|---|
| Water pressure range | From 2 bars to 10 bars |
| Water outlet | The cooling water outlet is located on the right-hand side of the unit, with a di ameter of 2/5 inch (inner Ø 10 mm). |
| Drainage tap | The drainage tap is located on the right-hand side of the unit, with a diameter of 2/5 inch (inner Ø 10 mm). |
| Distillate water | Distillate water can be withdrawn by continuously or push mode from front tap. |
| Power | The main connection cable on the left-hand side of the unit. |
Electrical data
| Voltage | 380 volts, 50/60Hz |
|---|---|
| Watt | 18000 watts |
Shipping information
| Customs tariff number | 8419 4090 |
|---|---|
| Packaging Dimension | 123 W X 77 D X 87 H (CM) |
| Net weight | 87 Kg |
| Gross weight | 98 Kg |
Order information
| Description | Model | Article number |
|---|---|---|
| Water Still – Capacity: 25 L/H, 50 L storage Tank –380V, 50/60Hz | DS 8025 | 5025.000 |
Options
| Description | Article number |
|---|---|
| Mains water inlet tap | 100 |
| Distilled water record | 200 |
| Waste water record | 300 |
| Drain tap | 400 |
| Heating element | 500 |
| Silicon hose | 600 |
